Item specifics
  • Model Name: MICRO-100
  • Item Weight: 1
  • Electronic: No
  • Item Length: 18
  • Brand Name: AUCHONG
  • External Testing Certification: CE
  • Material Type: plastic and metal
  • Voltage: 12~30V
  • Hardware Version: Newest Original
  • Power: 9w
  • Software Version: Newest
  • Item Width: 18
  • Item Height: 12
  • Item Type: Battery Testers
  • Item name: MICRO-100 Battery Tester
  • Asian version languages: English,Japanese,Russian and Chinese
  • Europe version languges: English,Frensh,Spanish,Italian,German
  • Warranty: One year free warranty
  • Main function: Car battery test (12V battery, 12V&24V system)
  • Voltage measure range: 6-30V DC
Product Description

1(1)

Item Description

Battery System Tester MICRO-100


Advantage:

1.Support Car 12v Battery ,Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.
2.Directly detect bad cell battery.
3.Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.
4.Directly test the battery with loss of electricity, no need to full charge before testing.
5.Testing standards include currently the world\\\'s majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.
6.Support multi-languages, customer can select different language package, which includes: Chinese Simple, Chinese Traditional, English, Japanese, Russian, Spanish, French, Italian, German, etc. Other languages can also be customized according to user\\\'s need.

Lancol Battery Conductance Tester adopts currently the world\\\'s most advanced conductance testing technology to easily, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy state of the battery itself, and common fault of the vehicle starting system and charging system, which can help maintenance personnel to find the problem quickly and accurately, thus to achieve quick vehicle repair.


Product Function:

Battery test is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery.It notifies the user to replace battery in advance when the battery is getting aged.

Cranking test is mainly to test and analyze the starting motor. Through testing the actual required cranking current and cranking voltage of the starting motor, it can find out whether the starting motor works fine.There are several reasons why the starting motor is abnormal: lubricating system fault causing the starting loaded torque increasing or rotor friction of the starting motor causing the increasing friction of the starting motor itself.

Charging test is to check and analyze the charging system, including generator, rectifier, rectifier diode, etc., thus to find out whether the output voltage of the generator is normal, the rectifier diode works fine and the charging current is normal.Suppose one of the above mentioned parts is not in normal situation, it will lead to over charge or incomplete charge of the battery, thus the battery will be quickly damaged and also greatly shorten the using life of other loaded electrical appliance.


Specifications:

1) Voltage Measure Range:6-30DCV.
2) Temperature Measure Range:-18C - +70C.
3) Cable Length: 120cm (3M optional)
4) Housing Materieal: Acid-resistant ABS plasticd

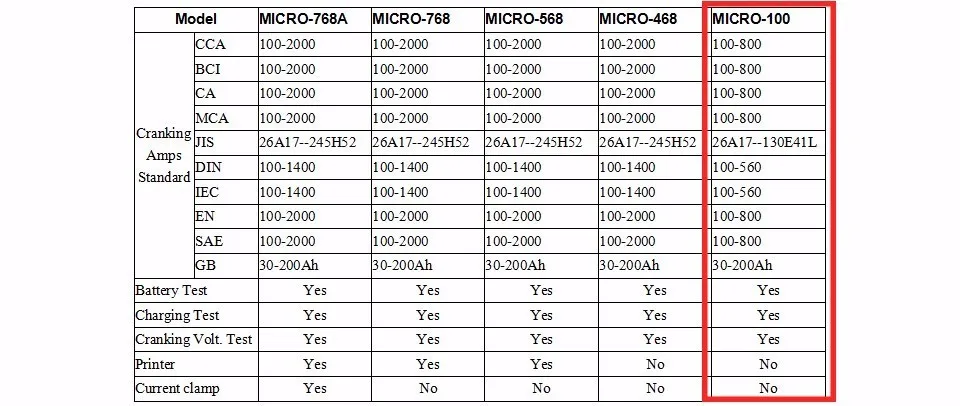

Battery Conductance Tester Model Difference:
MICRO-100

Packing List :

* 1X MICRO-100
* 1X User Manual


Item Pictures

MICRO-100 Battery Tester (4)MICRO-100 Battery Tester (7)MICRO-100 Battery Tester (6)MICRO-100 Battery Tester (5)MICRO-100 Battery Tester (1)MICRO-100 Battery Tester (2)MICRO-100 Battery Tester (3)







button01button02button03button04button05button06

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.6kg (1.32lb.)
  • Package Size: 20cm x 20cm x 15cm (7.87in x 7.87in x 5.91in)
